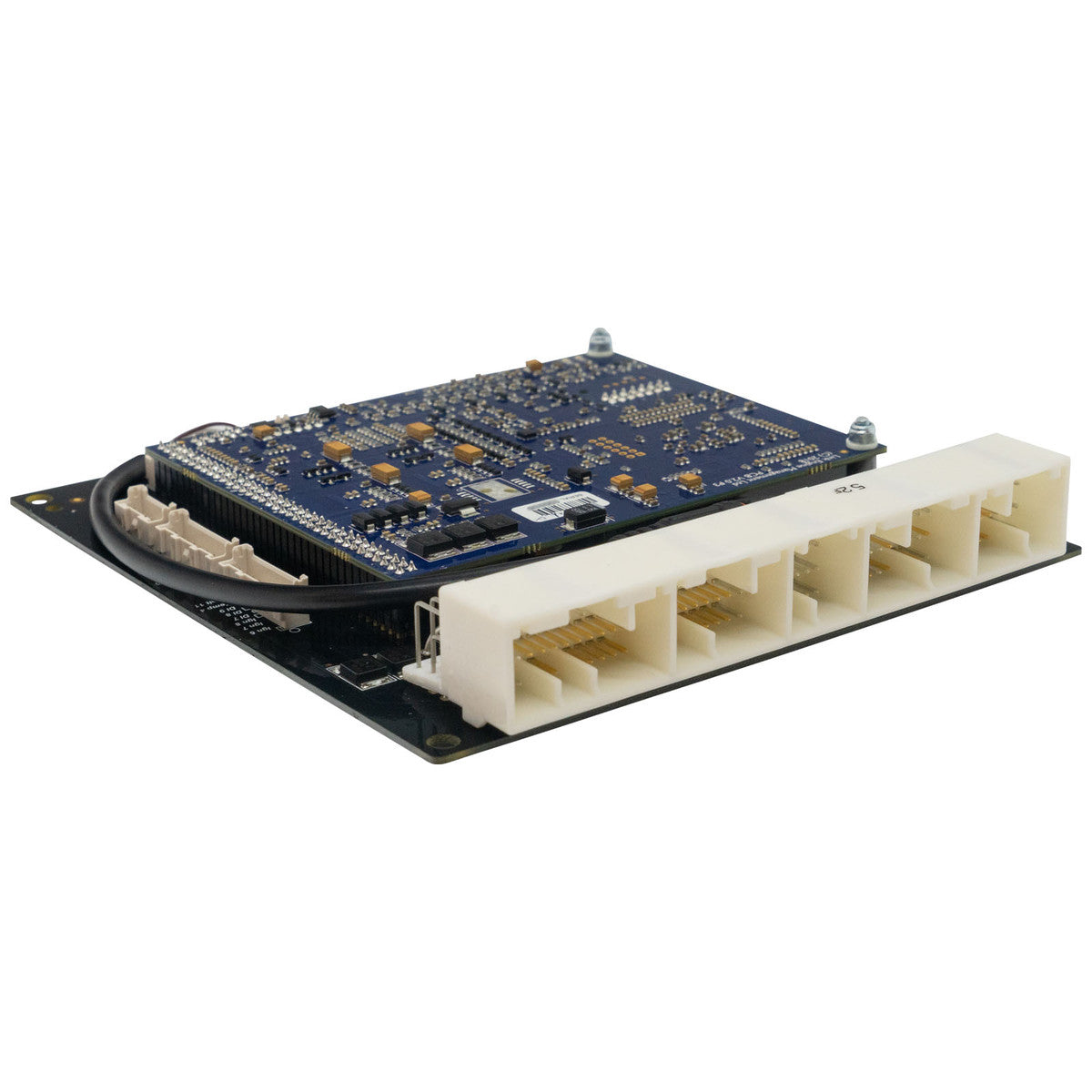

Link G4X WRXLink WRX9X Plugin ECU - Subaru WRX/STI 01-05

SKU: 229-4000

Easy to install. Affordable. Reliable.

G4X PlugIn ECUs offer the latest in engine management technology, designed to easily maximize the potential from your car.  This ECU fits inside the factory OEM enclosure. Installation is a breeze, with no alteration of the factory wiring loom required for the models listed below.

Designed for the WRX V7-9 EJ20.

• Please check your connector matches the header in the listed photo before purchasing. This ECU fits 5 Plug ECUs.
• This ECU works for manual transmissions only.
• Air temp sensor highly recommended.
• Most factory features are supported.
• Check the features tab for I/O expansion options

MAP Sensor not included.

Need more inputs and outputs?

The XS Expansion Loom offers the ability to add additional inputs & outputs on our range of plug-in ECUs.

G4X PlugIn Key Features (where applicable):

• Up to 6D fuel and ignition mapping
• Precision closed loop cam control (four cam, independent control)
• Sequential fuel delivery
• Digital triggering, all OEM patterns
• OEM idle hardware supported
• 5D boost control with three switchable tables
• Motorsport features - antilag, launch, flat shift
• Continuous barometric correction (on board)
• CAN port
• QuickTune - automated fuel tuning
• Individual cylinder correction
• USB tuning cable included
• Stats recording into on-board memory
• Gear compensations for spark, boost and fuel
• Real time selectable dual fuel, ignition and boost maps
• Sync and crank sensors can be a combination of Hall effect, variable reluctance or optical
• Boost control referenced to gear, speed or throttle position
• 512 mega bytes data logging memory
• Staged injection
• Knock with "windowing"

The following expansion connector inputs/outputs are provided:
Expansion connector 1

• Ign 6                Ignition 6 Auxiliary Output
• Ign 7                Ignition 7 Auxiliary Output
• Ign 8                Ignition 8 Auxiliary Output
• DI 7                Digital Input
• DI 8                Digital Input
• DI 9                Digital Input
• An Temp 4        Temperature sensor input
• An Volt 11        Analog 0-5V input

Expansion connector 2

• Gnd                Sensor Ground Only
• +5V Out        Low Current +5V Supply
• Aux 9                EThrottle - can't be used as an Aux out
• Aux 10                Auxiliary Output
• Volt 6                Analog 0-5V input
• Volt 7                Analog 0-5V input
• Volt 9                Analog 0-5V input
• Volt 10                Analog 0-5V input
