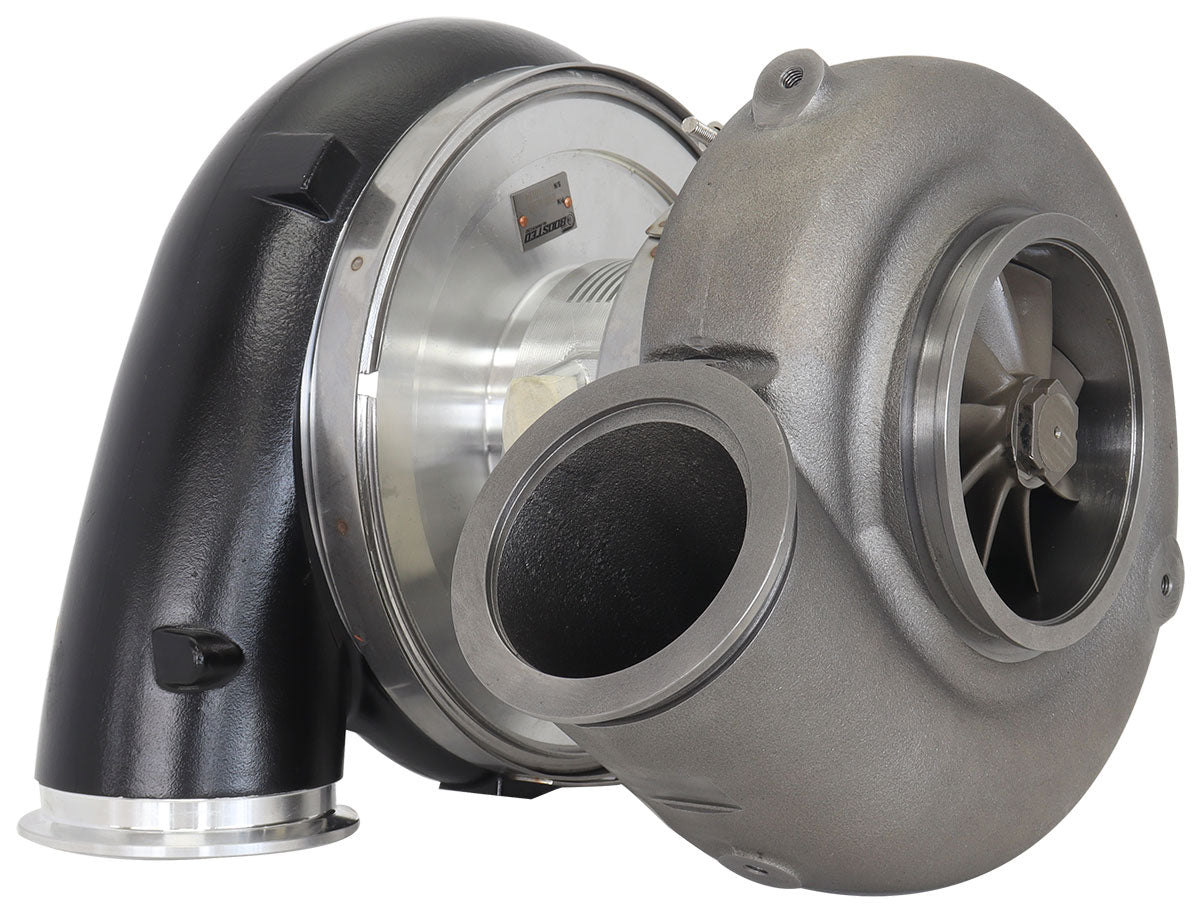

Aeroflow AF8005-6025BLK Boosted 106112 1.25 Dual V-Band G57-3000

BOOSTED 106112 V-Band Turbocharger Specifications

Recommended horsepower rating:  1500-3000HP
Recommended engine displacement:  3.0L to 12.0L

- Triple ceramic ball bearing
- 7075 billet compressor wheel
- Ported shroud compressor cover
- Billet CNC core
- This is an oil cooled turbocharger
- Speed sensor port included in compressor cover (Speed sensor sold separately, AF8050-1010)
- External wastegate sold separately
- Turbo drain gasket and -4AN turbo oil feed fitting with restrictor included in turbo kit. (Warranty VOID if not used)
- V-Band single entry turbine inlet flange
- SiMo-nodular cast iron rear housing
- V-Band turbine outlet flange
- V-Band compressor outlet flange
- 1/4" NPT to -4AN oil feed fitting with in-built restrictor attached to a 38mm 2-bolt oil feed plate with M8 x 1.25mm thread size
- 50.80mm bolt centre turbo drain flange with M8 x 1.25mm thread size

Compressor Specifications
Inducer:  106mm
Exducer:  144mm
A/R:  0.96
Compressor Inlet:  6" slip fit
Compressor Outlet: V-Band (AF8080-1031)

Turbine Specifications
Inducer:  118mm
Exducer:  112mm
A/R:  1.25
Turbine Inlet Flange: V-Band (AF8080-1028)
Turbine Outlet Flange:  V-Band (AF8080-1033)

Wastegate
External wastegate
