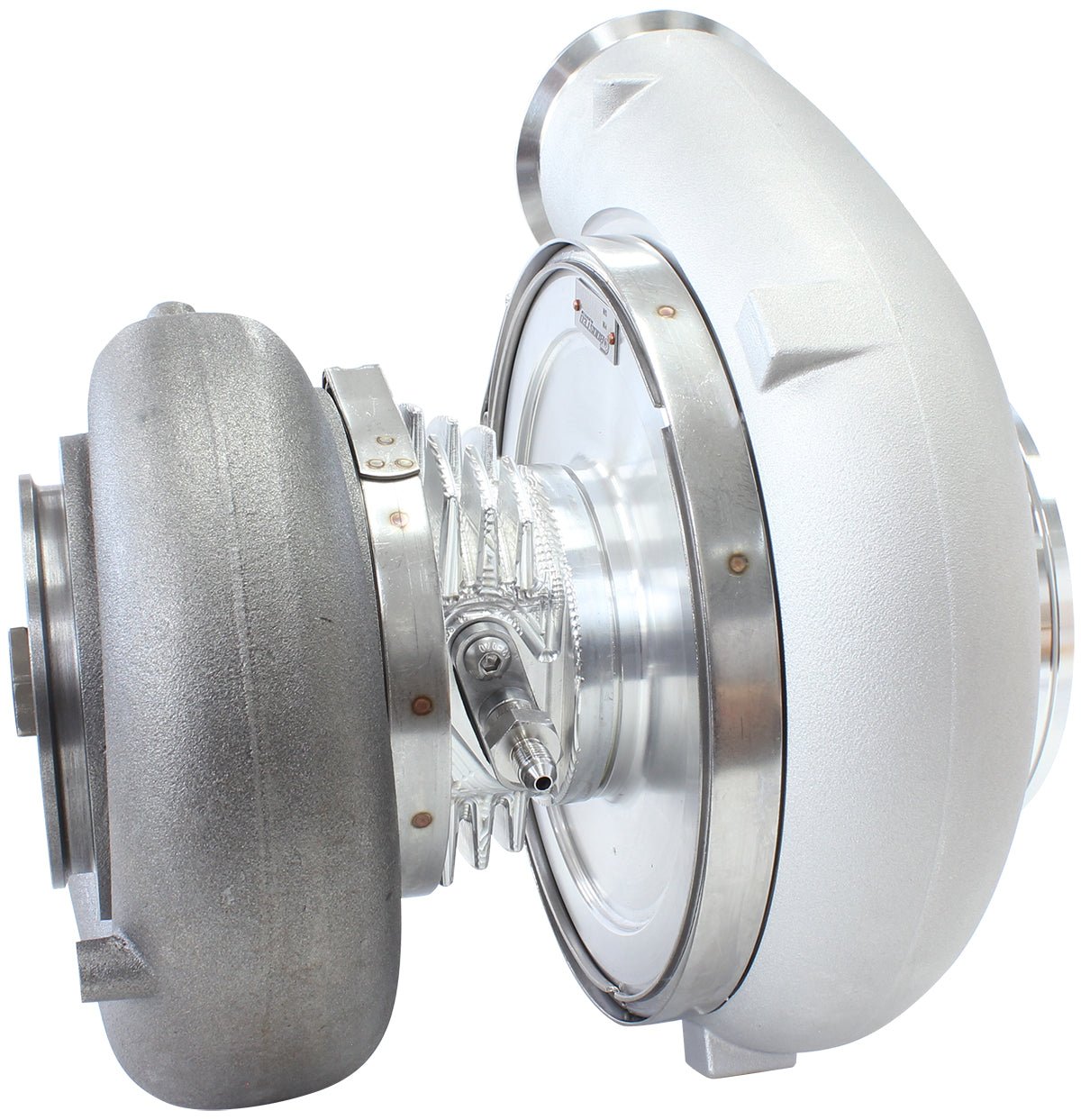

Aeroflow AF8005-6015 Boosted 94103 1.22 Dual V-Band GTX5533 Natural
Aeroflow AF8005-6015 Boosted 94103 1.22 Dual V-Band GTX5533 Natural
Regular price
$5,800.00
Regular price
Sale price
$5,800.00
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Part Number
AF8005-6015
BOOSTED 94103 V-Band Turbocharger Specifications
Recommended horsepower rating: 1000-2500HP
Recommended engine displacement: 3.0L to 12.0L
- Triple ceramic ball bearing
- 7075 billet compressor wheel
- Ported shroud compressor cover
- Billet CNC core
- This is an oil cooled turbocharger
- Speed sensor port included in compressor cover (Speed sensor sold separately, AF8050-1010)
- External wastegate sold separately
- Turbo drain gasket and -4AN turbo oil feed fitting with restrictor included in turbo kit. (Warranty VOID if not used)
- V-Band single entry turbine inlet flange
- SiMo-nodular cast iron rear housing
- V-Band turbine outlet flange
- V-Band compressor outlet flange
- 1/4" NPT to -4AN oil feed fitting with in-built restrictor attached to a 38mm 2-bolt oil feed plate with M8 x 1.25mm thread size
- 50.80mm bolt centre turbo drain flange with M8 x 1.25mm thread size
Compressor Specifications
Inducer: 94mm
Exducer: 133.80mm
Extended Tip: 138.40mm
A/R: 0.88
Compressor Inlet: 6" slip fit
Compressor Outlet: V-Band (AF8080-1007)
Turbine Specifications
Inducer: 112mm
Exducer: 103mm
A/R: 1.22
Turbine Inlet Flange: V-Band (AF8080-1028)
Turbine Outlet Flange: V-Band (AF8080-1029)
Wastegate
External wastegate
