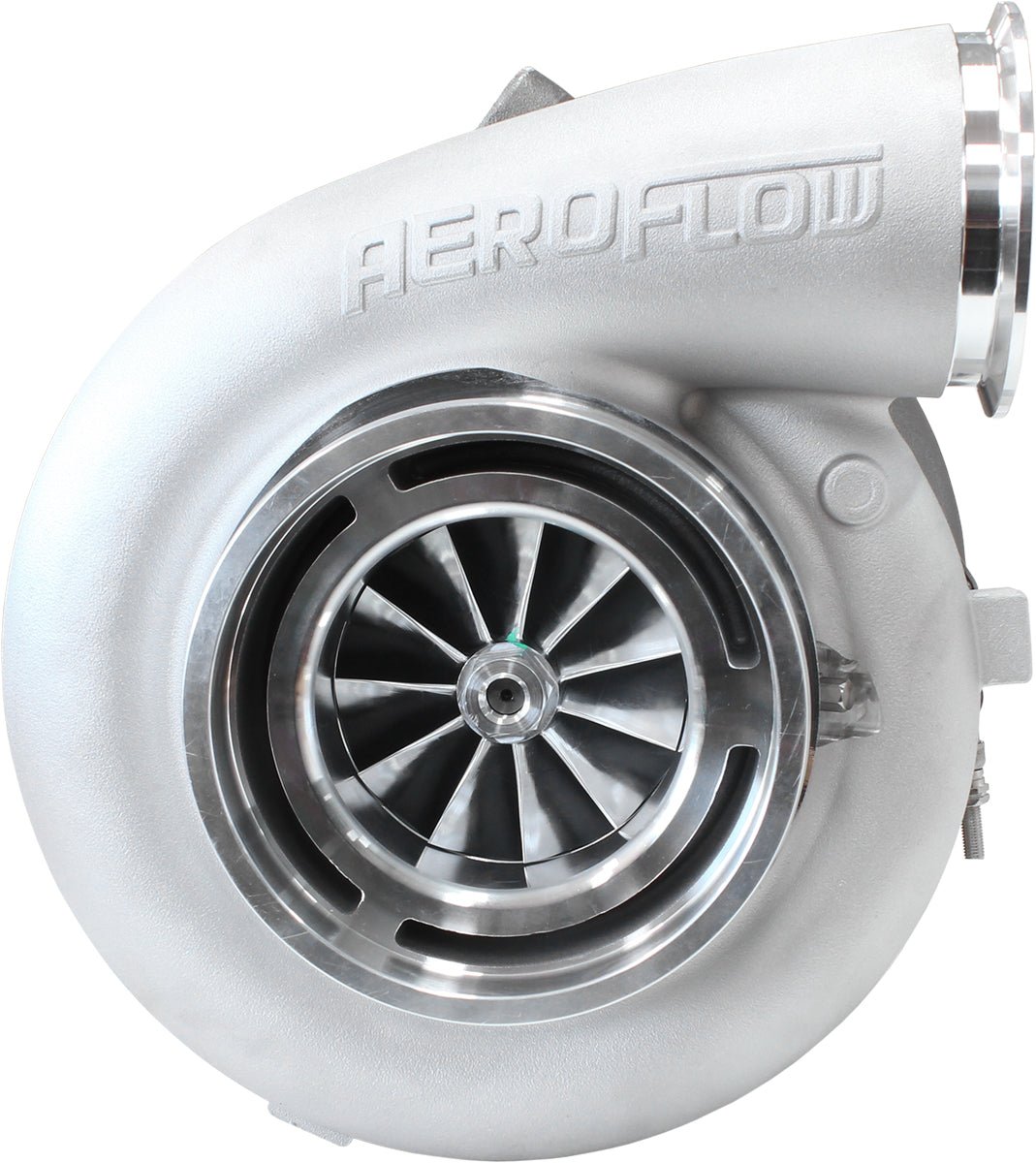

Aeroflow AF8005-6005BLK Boosted 94103 1.24 T6 V-Band Outlet GTX5533

BOOSTED 94103 T6 Turbocharger Specifications

Recommended horsepower rating:  1000-2500HP
Recommended engine displacement:  3.0L to 12.0L

- Triple ceramic ball bearing
- 7075 billet compressor wheel
- Ported shroud compressor cover
- Billet CNC core
- This is an oil cooled turbocharger
- Speed sensor port included in compressor cover (Speed sensor sold separately, AF8050-1010)
- External wastegate sold separately
- Inlet flange gasket, turbo drain gasket and -4AN turbo oil feed fitting with restrictor included in turbo kit. (Warranty VOID if not used)
- T6 single entry turbine inlet flange
- SiMo-nodular cast iron rear housing
- V-Band turbine outlet flange
- V-Band compressor outlet flange
- 1/4" NPT to -4AN oil feed fitting with in-built restrictor attached to a 38mm 2-bolt oil feed plate with M8 x 1.25mm thread size
- 50.80mm bolt centre turbo drain flange with M8 x 1.25mm thread size

Compressor Specifications
Inducer:  94mm
Exducer:  133.80mm
Extended Tip:  138.40mm
A/R:  0.88
Compressor Inlet:  6" slip fit
Compressor Outlet: V-Band (AF8080-1007)

Turbine Specifications
Inducer:  112mm
Exducer:  103mm
A/R:  1.24
Turbine Inlet Flange: T6
Turbine Outlet Flange:  V-Band (AF8080-1018)

Wastegate
External wastegate
