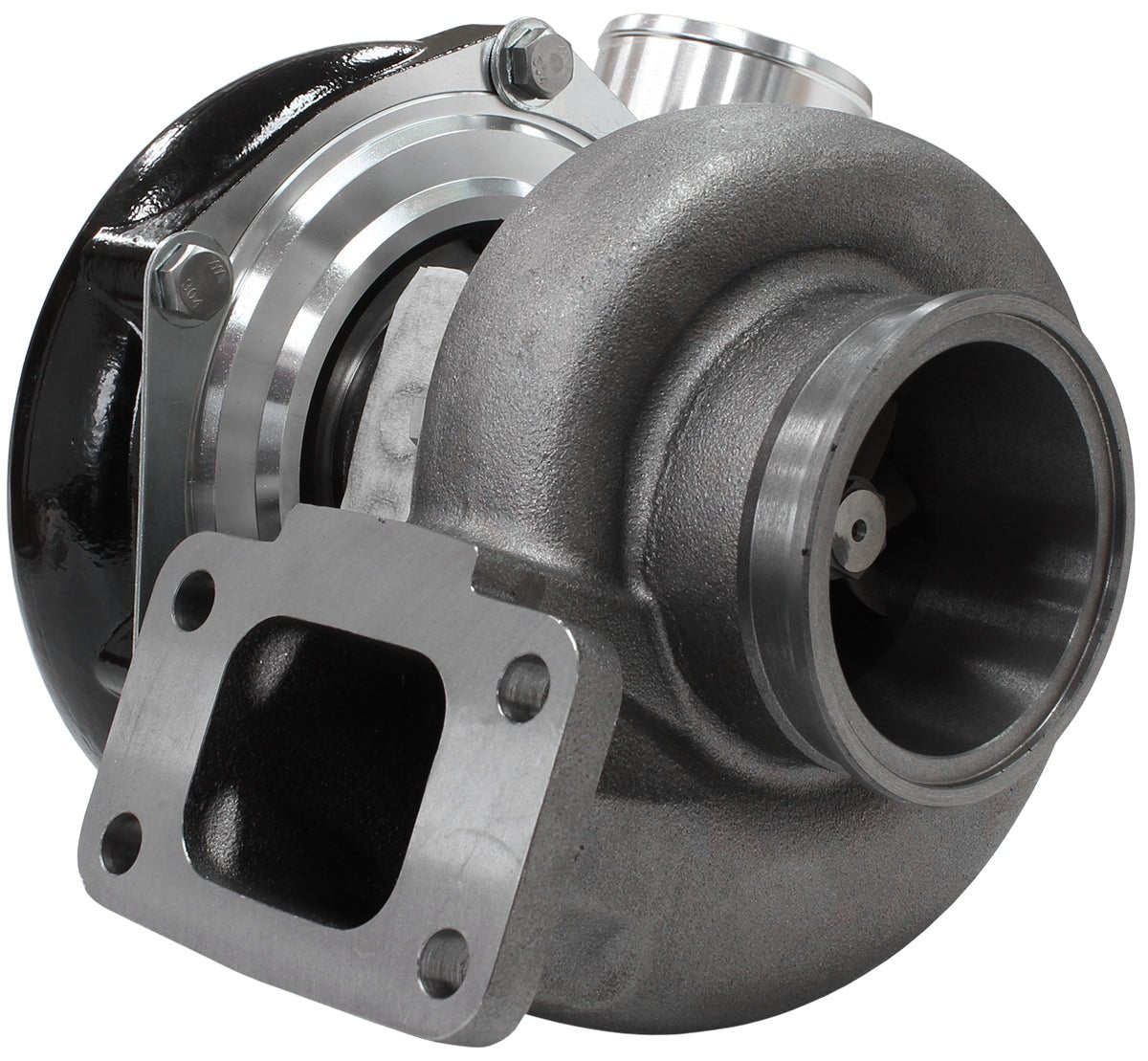

Aeroflow AF8005-3030BLK Boosted 6762 1.06 T3 Inlet V-Band Outlet GTX3584

BOOSTED 6762 Turbocharger Specifications

Recommended horsepower rating:  550-950HP
Recommended engine displacement:  2.0L to 5.5L

- Dual ceramic ball bearing
- Point Milled 7075 billet compressor wheel
- Ported shroud compressor cover
- Speed sensor port included in compressor cover (Speed sensor sold separately, AF8050-1010)
- External wastegate sold separately
- Inlet flange gasket, turbo drain gasket and -4AN turbo oil feed fitting with restrictor included in turbo kit. (Warranty VOID if not used)
- T3 single entry turbine inlet flange
- SiMo-nodular cast iron rear housing
- V-Band turbine outlet flange
- M14 x 1.5mm coolant port thread
- 7/16"-24 oil feed fitting with in-built restrictor
- 38mm bolt centre turbo drain flange with M8 x 1.25mm thread size

Compressor Specifications
Inducer:  67mm
Exducer:  84mm
Extended Tip:  87.5mm
A/R:  0.72
Compressor Inlet:  4" Slip fit
Compressor Outlet:  2.5" Slip fit

Turbine Specifications
Inducer:  68mm
Exducer:  62.3mm
A/R:  1.06
Turbine Inlet Flange:  T3
Turbine Outlet Flange:  V-Band (AF8080-1000)

Wastegate
External wastegate
